Amazon EC2 Deployments

You can create an Amazon EC2 deployment for an active AWS environment.

When you create an Amazon EC2 deployment, you define the engine type, version, and configuration to deploy to the Amazon VPC specified in the environment. You also specify the number of engine instances to deploy. Each engine instance runs on a dedicated EC2 instance.

For more details, refer to the StreamSets Platform Documentation.

Creating Deployment for Data Collector

The SDK is designed to mirror the UI workflow. This section shows you how to create an EC2 deployment for Data Collector in the UI and how to achieve the same using StreamSets Platform SDK for Python code step by step.

Define the Deployment

In the UI, a deployment is defined as seen below:

The same effect can be achieved by using the SDK as seen below:

deployment_builder = sch.get_deployment_builder(deployment_type='EC2')

# sample_environment is an instance of streamsets.sdk.sch_models.AWSEnvironment
deployment = deployment_builder.build(deployment_name='Sample Deployment DC-EXISTING_KEY_PAIR_NAME',
                                      environment=sample_environment,
                                      engine_type='DC',
                                      engine_version='4.1.0',
                                      deployment_tags=['ec2-deployment-tag'])
sch.add_deployment(deployment)

Configure the Engine

In the UI, a deployment’s engines are configured as seen below:

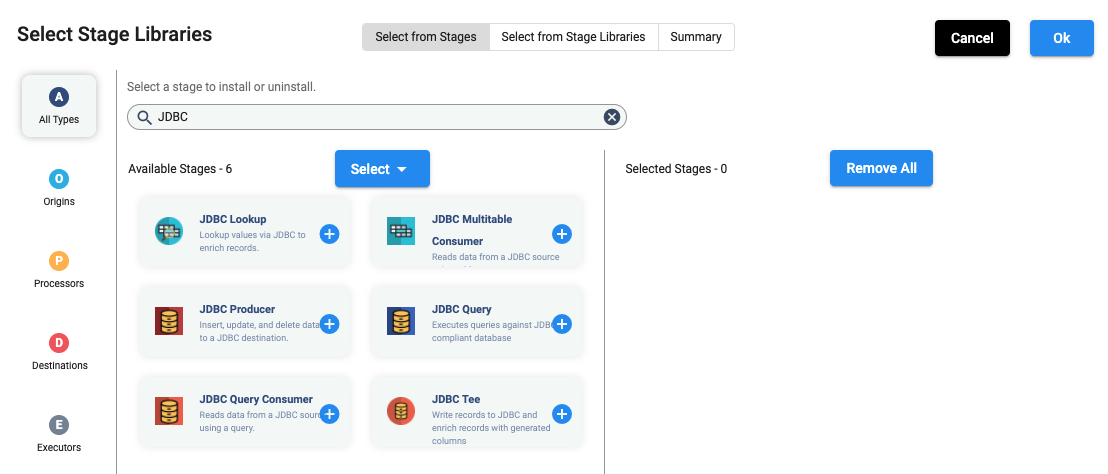

In the above UI, when you click on 4 stage libraries selected, the following allows you to select stage libraries.

In the above UI, once you select JDBC and click on any of the ‘+’ signs, it shows the following:

Selecting stage libraries for a deployment is also possible using the SDK. The stage_libs property of the streamsets.sdk.sch_models.DeploymentEngineConfiguration attribute in a Deployment object allows specification of additional stage libraries in the '<library_name>' format, or optionally the '<library_name>:<library_version>' format.

Note

If a version is omitted for a stage library, it will default to the engine version that was configured for the deployment.

There are several methods available for modifying the stage libraries of a deployment. If you know the complete list of stage libraries you want to add to a deployment, you can specify them as a list and set the stage_libs attribute directly as seen below:

Warning

Attempting to add multiple versions of the same stage library to a deployment’s engine configuration will result in an error when you attempt to add or update a deployment on the StreamSets Platform.

# Stage libraries can be supplied both with and without version specified. Any without a version will default
# to the version of the engine selected for the deployment
deployment.engine_configuration.stage_libs = ['jdbc', 'aws:4.1.0', 'cdp_7_1:4.1.0', 'basic:4.1.0', 'dev']

The stage_libs attribute operates like a traditional list object, with accompanying append(), extend(), and remove() methods. If you are looking to add a single stage library to a deployment’s engine configuration, you can utilize the streamsets.sdk.sch_models.DeploymentStageLibraries.append() method, using the same library:version syntax from above:

# Adding a single additional library to the stage library configuration
deployment.engine_configuration.stage_libs.append('aws')

If you would prefer to add a list of additional stage libraries to a deployment’s engine configuration, you can utilize the streamsets.sdk.sch_models.DeploymentStageLibraries.extend() method, which also follows the same library:version syntax from above:

# Extending the list of stage libraries by adding two additional stages
deployment.engine_configuration.stage_libs.extend(['cassandra_3:4.1.0', 'elasticsearch_7'])

Finally, if you would like to remove a single stage library from a deployment’s engine configuration, you can utilize the streamsets.sdk.sch_models.DeploymentStageLibraries.remove() method. The removal of a stage library from a deployment’s engine configuration intentionally requires a version to be supplied, so as to not accidentally remove an unintended stage library:

# Removing a single library from the stage library configuration by supplying the library name and version
deployment.engine_configuration.stage_libs.remove('aws:4.1.0')

Once the desired stage libraries have been set for the deployment, the deployment must be updated on Control Hub using the streamsets.sdk.ControlHub.update_deployment() method in order for them to take effect:

# Update a deployment's configuration/definition on Control Hub
sch.update_deployment(deployment)

Configure the EC2 Autoscaling Group

In the UI, the EC2 Autoscaling Group for a deployment is configured as seen below:

The same effect can be achieved by using the SDK as seen below:

deployment.engine_instances = 1
deployment.ec2_instance_type = 'm4.large'
# Optional instance_profile, not required if environment has default instance profile set
deployment.instance_profile = <AWS instance profile>
deployment.aws_tags = 'owner=stf'

Configure EC2 SSH Access

In the UI, the EC2 SSH Access for a deployment is configured as seen below:

The same effect can be achieved by using the SDK as seen below:

deployment.ssh_key_source = 'EXISTING_KEY_PAIR_NAME'
deployment.key_pair_name = <SSH key pair name>

Review and Launch the Deployment

In the UI, a deployment can be reviewed and launched as seen below:

The same effect can be achieved by using the SDK as seen below:

# Optional - equivalent to clicking on 'Launch Deployment'
sch.start_deployment(deployment)

Complete example for Data Collector

To create a new streamsets.sdk.sch_models.EC2Deployment object and add it to Control Hub, use the streamsets.sdk.sch_models.DeploymentBuilder class. Use the streamsets.sdk.ControlHub.get_deployment_builder() method to instantiate the builder object:

deployment_builder = sch.get_deployment_builder(deployment_type='EC2')

Next, retrieve the streamsets.sdk.sch_models.AWSEnvironment object which represents an active AWS environment where engine instances will be deployed, pass it to the streamsets.sdk.sch_models.DeploymentBuilder.build() method along with other parameters, and pass the resulting streamsets.sdk.sch_models.EC2Deployment object to the streamsets.sdk.ControlHub.add_deployment() method:

# sample_environment is an instance of streamsets.sdk.sch_models.AWSEnvironment
deployment = deployment_builder.build(deployment_name='Sample Deployment DC-EXISTING_KEY_PAIR_NAME',
                                      environment=sample_environment,
                                      engine_type='DC',
                                      engine_version='4.1.0',
                                      deployment_tags=['ec2-deployment-tag'])
sch.add_deployment(deployment)

deployment.engine_instances = 1
deployment.ec2_instance_type = 'm4.large'
# Optional instance_profile, not required if environment has default instance profile set
deployment.instance_profile = <AWS instance profile>
deployment.ssh_key_source = 'EXISTING_KEY_PAIR_NAME' # The other valid value is 'NONE'
deployment.key_pair_name = <SSH key pair name>
deployment.aws_tags = 'owner=stf'

# Optional - add sample stage libs
deployment.engine_configuration.stage_libs = ['jdbc', 'aws:4.1.0', 'cdp_7_1:4.1.0', 'basic:4.1.0', 'dev']
# deployment.engine_configuration.stage_libs.append('aws')
# deployment.engine_configuration.stage_libs.extend(['cassandra_3:4.1.0', 'elasticsearch_7'])

# Update a deployment's configuration/definition on Control Hub
sch.update_deployment(deployment)

# Optional - equivalent to clicking on 'Launch Deployment'
sch.start_deployment(deployment)

Creating Deployment for Transformer

The SDK is designed to mirror the UI workflow. This section shows you how to create an EC2 deployment for Transformer in the UI and how to achieve the same using the StreamSets Platform SDK for Python code step by step.

Define the Deployment

In the UI, a deployment is defined as seen below:

The same effect can be achieved by using the SDK as seen below:

deployment_builder = sch.get_deployment_builder(deployment_type='EC2')

# sample_environment is an instance of streamsets.sdk.sch_models.AWSEnvironment
deployment = deployment_builder.build(deployment_name='Sample Deployment TF-EXISTING_KEY_PAIR_NAME',
                                      environment=sample_environment,
                                      engine_type='TF',
                                      engine_version='4.1.0',
                                      scala_binary_version='2.12',
                                      deployment_tags=['ec2-deployment-tag'])
sch.add_deployment(deployment)

Configure the Engine

In the UI, a deployment’s engines are configured as seen below:

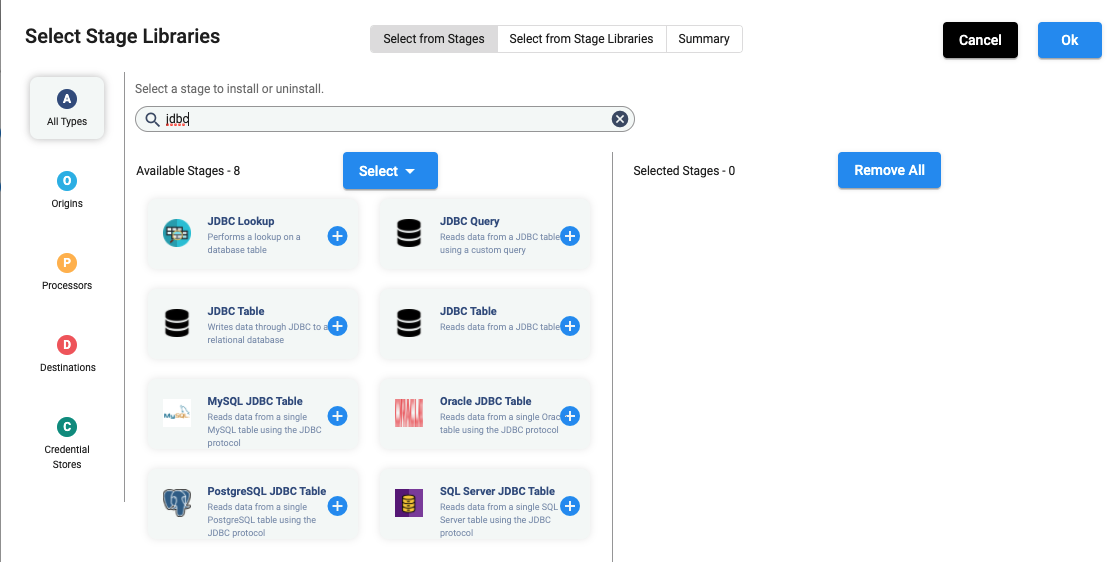

In the above UI, when you click on 4 stage libraries selected, the following allows you to select stage libraries.

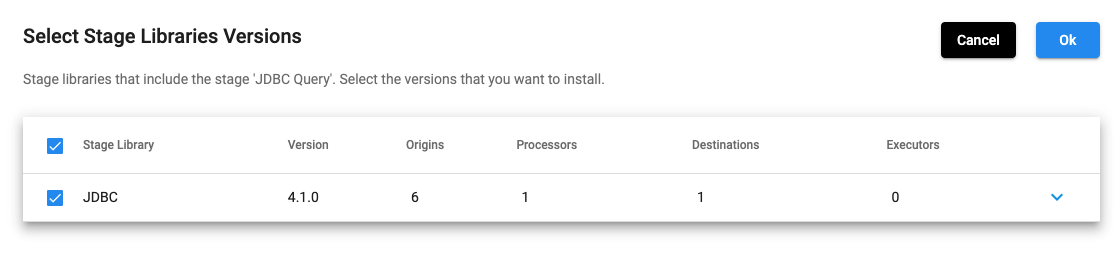

In the above UI, once you select JDBC and click on any of the ‘+’ signs, it shows the following:

Selecting stage libraries for a deployment is also possible using the SDK. The stage_libs property of the streamsets.sdk.sch_models.DeploymentEngineConfiguration attribute in a Deployment object allows specification of additional stage libraries in the '<library_name>' format, or optionally the '<library_name>:<library_version>' format.

Note

If a version is omitted for a stage library, it will default to the engine version that was configured for the deployment.

There are several methods available for modifying the stage libraries of a deployment. If you know the complete list of stage libraries you want to add to a deployment, you can specify them as a list and set the stage_libs attribute directly as seen below:

Warning

Attempting to add multiple versions of the same stage library to a deployment’s engine configuration will result in an error when you attempt to add or update a deployment on the StreamSets Platform.

# Stage libraries can be supplied both with and without version specified. Any without a version will default
# to the version of the engine selected for the deployment
deployment.engine_configuration.stage_libs = ['file', 'aws:4.1.0', 'jdbc', 'kafka:4.1.0']

The stage_libs attribute operates like a traditional list object, with accompanying append(), extend(), and remove() methods. If you are looking to add a single stage library to a deployment’s engine configuration, you can utilize the streamsets.sdk.sch_models.DeploymentStageLibraries.append() method, using the same library:version syntax from above:

# Adding a single additional library to the stage library configuration
deployment.engine_configuration.stage_libs.append('hive:4.1.0')

If you wouldd prefer to add a list of additional stage libraries to a deployment’s engine configuration, you can utilize the streamsets.sdk.sch_models.DeploymentStageLibraries.extend() method, which also follows the same library:version syntax from above:

# Extending the list of stage libraries by adding two additional stages
deployment.engine_configuration.stage_libs.extend(['redshift-no-dependency:4.1.0', 'azure_3_2_0'])

Finally, if you would like to remove a single stage library from a deployment’s engine configuration, you can utilize the streamsets.sdk.sch_models.DeploymentStageLibraries.remove() method. The removal of a stage library from a deployment’s engine configuration intentionally requires a version to be supplied, so as to not accidentally remove an unintended stage library:

# Removing a single library from the stage library configuration by supplying the library name and version
deployment.engine_configuration.stage_libs.remove('kafka:4.1.0')

Once the desired stage libraries have been set for the deployment, the deployment must be updated on Control Hub using the streamsets.sdk.ControlHub.update_deployment() method in order for them to take effect:

# Update a deployment's configuration/definition on Control Hub
sch.update_deployment(deployment)

Configure the EC2 Autoscaling Group

In the UI, the EC2 Autoscaling Group for a deployment is configured as seen below:

The same effect can be achieved by using the SDK as seen below:

deployment.engine_instances = 1
deployment.ec2_instance_type = 'm4.large'
# Optional instance_profile, not required if environment has default instance profile set
deployment.instance_profile = <AWS instance profile>
deployment.aws_tags = 'owner=stf'

Configure EC2 SSH Access

In the UI, the EC2 SSH Access for a deployment is configured as seen below:

The same effect can be achieved by using the SDK as seen below:

deployment.ssh_key_source = 'EXISTING_KEY_PAIR_NAME' # The other valid value is 'NONE'
deployment.key_pair_name = <SSH key pair name>

Review and Launch the Deployment

In the UI, a deployment can be reviewed and launched as seen below:

The same effect can be achieved by using the SDK as seen below:

# Optional - equivalent to clicking on 'Launch Deployment'
sch.start_deployment(deployment)

Complete example for Transformer

To create a new streamsets.sdk.sch_models.EC2Deployment object and add it to Control Hub, use the streamsets.sdk.sch_models.DeploymentBuilder class. Use the streamsets.sdk.ControlHub.get_deployment_builder() method to instantiate the builder object:

deployment_builder = sch.get_deployment_builder(deployment_type='EC2')

Next, retrieve the streamsets.sdk.sch_models.AWSEnvironment object which represents an active AWS environment where engine instances will be deployed, pass it to the streamsets.sdk.sch_models.DeploymentBuilder.build() method along with other parameters, and pass the resulting streamsets.sdk.sch_models.EC2Deployment object to the streamsets.sdk.ControlHub.add_deployment() method:

# sample_environment is an instance of streamsets.sdk.sch_models.AWSEnvironment
deployment = deployment_builder.build(deployment_name='Sample Deployment TF-EXISTING_KEY_PAIR_NAME',
                                      deployment_tags=['ec2-deployment-tag'],
                                      engine_type='TF',
                                      engine_version='4.1.0',
                                      scala_binary_version='2.12',
                                      environment=sample_environment)
sch.add_deployment(deployment)

deployment.engine_instances = 1
deployment.ec2_instance_type = 'm4.large'
# Optional instance_profile, not required if environment has default instance profile set
deployment.instance_profile = <AWS instance profile>
deployment.ssh_key_source = 'EXISTING_KEY_PAIR_NAME' # The other valid value is 'NONE'
deployment.key_pair_name = <SSH key pair name>
deployment.aws_tags = 'owner=stf'

# Optional - add sample stage libs
deployment.engine_configuration.stage_libs = ['file', 'aws_3_2_0:4.1.0', 'jdbc', 'kafka:4.1.0']
# deployment.engine_configuration.stage_libs.append('hive:4.1.0')
# deployment.engine_configuration.stage_libs.extend(['redshift-no-dependency:4.1.0', 'azure_3_2_0'])

# Update a deployment's configuration/definition on Control Hub
sch.update_deployment(deployment)

# Optional - equivalent to clicking on 'Launch Deployment'
sch.start_deployment(deployment)
