Pipeline Statistics

A Control Hub job defines the pipeline to run and the Data Collectors that run the pipeline. When you start a job, Control Hub remotely runs the pipeline on the group of Data Collectors. To monitor the job statistics and metrics within Control Hub, you must configure the pipeline to write statistics to Control Hub or to another system.

When a job runs on a single Data Collector, you can simply configure the pipeline to write the statistics directly to Control Hub. By default, pipelines are configured to write statistics directly to Control Hub.

When a job runs on multiple Data Collectors, a remote pipeline instance runs on each of the Data Collectors. To view aggregated statistics for the job within Control Hub, you must configure the pipeline to write the statistics to one of the following systems:

SDC RPC
Kafka cluster
Amazon Kinesis Streams
MapR Streams

When you start a job that includes a pipeline configured to write to Kafka, Kinesis, MapR Streams, or SDC RPC, Control Hub automatically generates and runs a system pipeline for the job. The system pipeline reads the statistics written by each running pipeline instance to Kafka, Kinesis, MapR Streams, or SDC RPC. Then, the system pipeline aggregates and sends the statistics to Control Hub.

Important: For a production environment, use a Kafka cluster, Amazon Kinesis Streams, or MapR Streams to aggregate statistics. Using SDC RPC to aggregate statistics is not highly available and might cause the loss of some data. It should be used for development purposes only.

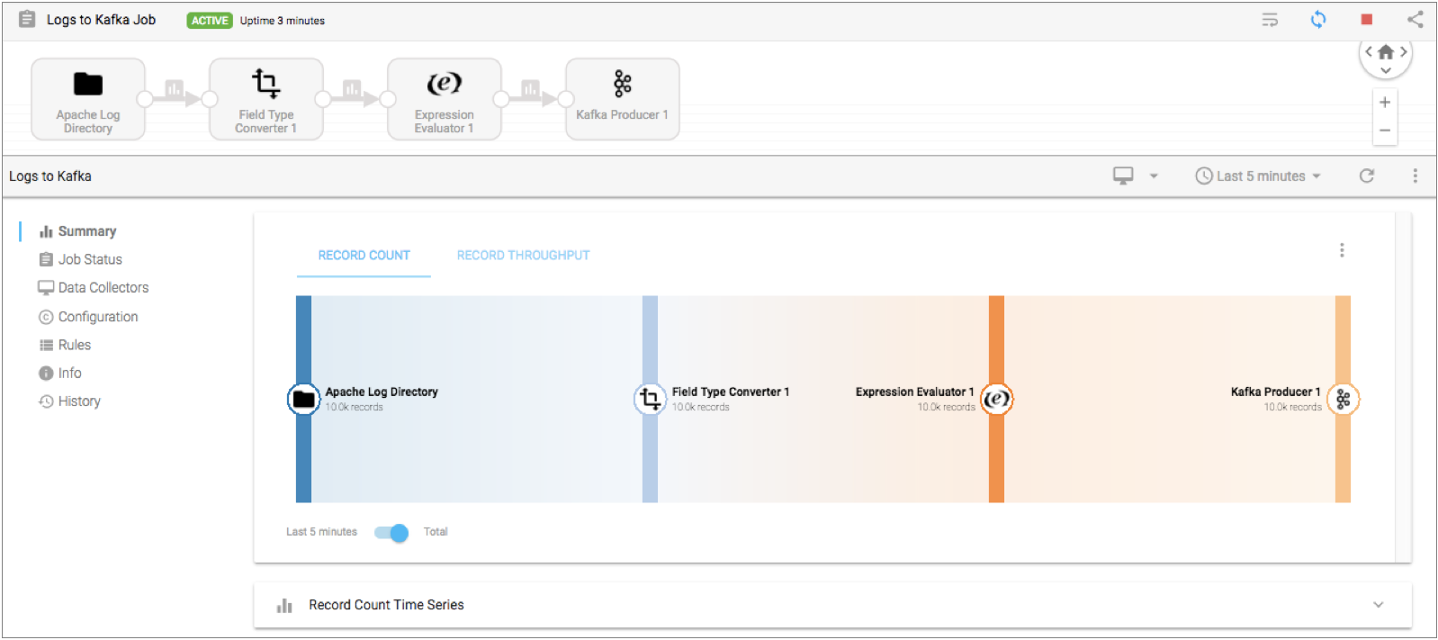

When a Control Hub job includes a pipeline that is configured to write statistics, you can view the statistics and metrics when you monitor the job in Control Hub:

When a Control Hub job includes a pipeline that is configured to discard statistics, Control Hub cannot display statistics and metrics for the job. Instead, Control Hub displays the following warning message when you monitor the job:

Aggregated metrics for the job are not available as individual pipeline metrics are discarded.

Pipeline Execution Mode

Pipelines can run in standalone, cluster, or edge execution mode. Some pipeline execution modes do not support all statistics aggregator options.

The following table lists each pipeline execution mode and the statistics aggregator options that it supports:

Pipeline Execution Mode	Supported Statistics Aggregator Options
Standalone	All options are supported.
Cluster	Write to SDC RPC Write to Kafka Write to Kinesis Streams Write to MapR Streams
Edge	Write to SCH Directly

Write Statistics Directly to Control Hub

When you write statistics directly to Control Hub, Control Hub does not generate a system pipeline for the job. Instead, the Data Collector directly sends the statistics to Control Hub.

Write statistics directly to Control Hub when the job runs on a single Data Collector. If the job runs on multiple Data Collectors, Control Hub can display the pipeline statistics for each individual Data Collector. However, Control Hub cannot display an aggregated view of the statistics across all running pipeline instances.

Write Statistics to SDC RPC

When you write statistics to SDC RPC, Data Collector effectively adds an SDC RPC destination to the pipeline that you are configuring. Control Hub automatically generates and runs a system pipeline for the job. The system pipeline is a pipeline with a Dev SDC RPC with Buffering origin that reads the statistics passed from the SDC RPC destination, and then aggregates and sends the statistics to Control Hub.

Write statistics to SDC RPC when the job runs on multiple Data Collectors.

When you configure a pipeline to write statistics to an SDC RPC destination, you specify the following information:

SDC RPC connection - The host and port number of the Data Collector machine where Control Hub starts the system pipeline. The host must be a Data Collector machine registered with Control Hub that can run a pipeline for the job. A Data Collector can run the pipeline when it has all labels associated with the job.
For example, if you associate the job with the WestCoast label, then the host specified in the RPC connection must be a machine with a registered Data Collector that also has the WestCoast label.
SDC RPC ID - A user-defined identifier that allows SDC RPC stages to recognize each other. To avoid mixing statistics from different jobs, use a unique ID for each job.

You can optionally enable encryption to pass data securely and define retry and timeout properties.

For more information about SDC RPC pipelines, see SDC RPC Pipeline Overview.

Best Practices for SDC RPC

Consider the following best practices when you configure a pipeline to write statistics to an SDC RPC destination:

To avoid mixing statistics from different jobs, use a unique SDC RPC ID for each job.
Monitor the disk space where the Dev SDC RPC with Buffering origin in the system pipeline temporarily buffers the records to disk before passing the records to the next stage in the pipeline.
The Dev SDC RPC with Buffering origin in the system pipeline temporarily buffers the statistics to a queue on disk. If the system pipeline slows, the temporary location on disk might become full. The temporary statistics are written to the location specified in the java.io.tmpdir system property, to a file with the following name:
```
sdc-fragments<file ID>.queueFile
```

Write Statistics to Kafka

When you write statistics to a Kafka cluster, Data Collector effectively adds a Kafka Producer destination to the pipeline that you are configuring. Control Hub automatically generates and runs a system pipeline for the job. The system pipeline reads the statistics from Kafka, and then aggregates and sends the statistics to Control Hub.

Write statistics to a Kafka cluster when the job runs on multiple Data Collectors.

When you write statistics to a Kafka cluster, you define connection information and the topic to write to.

You also configure the partition strategy. The pipeline passes data to partitions in the Kafka topic based on the partition strategy that you choose. You can add additional Kafka configuration properties as needed.

Note: At this time, you cannot configure the pipeline to connect securely through SSL/TLS or Kerberos when using Kafka.

Partition Strategy

The partition strategy determines how to write statistics to Kafka partitions. You can use a partition strategy to balance the work load or to write data semantically.

The pipeline can use one of the following partition strategies:

Round-Robin: Writes statistics to a different partition using a cyclical order. Use for load balancing.
Random: Writes statistics to a different partition using a random order. Use for load balancing.
Expression: Writes statistics to a partition based on the results of the partition expression. Use to perform semantic partitioning.; When you configure the partition expression, define the expression to evaluate to the partition where you want statistics written.
Default: Writes statistics using the default partition strategy that Kafka provides.

Best Practices for a Kafka Cluster

Consider the following best practices when you configure a pipeline to write statistics to a Kafka cluster:

To avoid mixing statistics from different jobs, use a unique topic name for each job.
Consider the Kafka retention policy.
Each running pipeline instance writes statistics to Kafka, and then the system pipeline consumes the statistics from Kafka. If the system pipeline unexpectedly shuts down, Kafka retains the statistics for the amount of time determined by the Kafka retention policy. If the system pipeline is down for longer than Kafka retains data, the statistics are lost.

Write Statistics to Kinesis Streams

When you write statistics to Amazon Kinesis Streams, Data Collector effectively adds a Kinesis Producer destination to the pipeline that you are configuring. Control Hub automatically generates and runs a system pipeline for the job. The system pipeline reads the statistics from Kinesis Streams, and then aggregates and sends the statistics to Control Hub.

Write statistics to Kinesis Streams when the job runs on multiple Data Collectors.

When you write statistics to Kinesis Streams, you define connection information and the stream to write to.

You also configure the partition strategy. The pipeline passes data to partitions in Kinesis shards based on the partition strategy that you choose. You can add additional Kinesis configuration properties as needed.

AWS Credentials

When the pipeline writes aggregated statistics to Amazon Kinesis Streams, it must pass credentials to Amazon Web Services.

Use one of the following methods to pass AWS credentials:

IAM roles: When Data Collector runs on an Amazon EC2 instance, you can use the AWS Management Console to configure an IAM role for the EC2 instance. Data Collector uses the IAM instance profile credentials to automatically connect to AWS.; When you use IAM roles, you do not need to specify the Access Key ID and Secret Access Key properties when you configure statistics for the pipeline.; For more information about assigning an IAM role to an EC2 instance, see the Amazon EC2 documentation.
AWS access key pairs: When Data Collector does not run on an Amazon EC2 instance or when the EC2 instance doesn’t have an IAM role, you must specify the Access Key ID and Secret Access Key properties when you configure statistics for the pipeline.

Best Practices for Kinesis Streams

Consider the following best practices when you configure a pipeline to write statistics to Amazon Kinesis Streams:

To avoid mixing statistics from different jobs, use a unique stream name for each job.
Consider the Kinesis Streams retention policy.
Each running pipeline instance writes statistics to Kinesis Streams, and then the system pipeline reads the statistics from Kinesis Streams. If the system pipeline unexpectedly shuts down, Kinesis Streams retains the statistics for the amount of time determined by the Kinesis Streams retention policy. If the system pipeline is down for longer than Kinesis Streams retains data, the statistics are lost.

Write Statistics to MapR Streams

When you write statistics to MapR Streams, Data Collector effectively adds a MapR Streams Producer destination to the pipeline that you are configuring. Control Hub automatically generates and runs a system pipeline for the job. The system pipeline reads the statistics from MapR Streams, and then aggregates and sends the statistics to Control Hub.

Write statistics to MapR Streams when the job runs on multiple Data Collectors.

When you write statistics to MapR Streams, you define the topic to write to. You also configure the partition strategy. The pipeline passes data to partitions in the MapR Streams topic based on the partition strategy that you choose. You can add additional MapR Streams configuration properties as needed.

Before you can write statistics to MapR Streams, you must perform additional steps to enable Data Collector to process MapR data. For more information, see MapR Prerequisites.

Partition Strategy

The partition strategy determines how to write statistics to MapR Streams partitions. You can use a partition strategy to balance the work load or to write data semantically.

The pipeline can use one of the following partition strategies:

Round-Robin: Writes each record to a different partition using a cyclical order. Use for load balancing.
Random: Writes each record to a different partition using a random order. Use for load balancing.
Expression: Writes each record to a partition based on the results of the partition expression. Use to perform semantic partitioning.; When you configure the partition expression, define the expression to evaluate to the partition where you want each record written. The expression must return a numeric value.
Default: Writes each record using the default partition strategy that MapR Streams provides.

Best Practices for MapR Streams

Consider the following best practices when you configure a pipeline to write statistics to MapR Streams:

To avoid mixing statistics from different jobs, use a unique topic name for each job.
Consider the MapR Streams retention policy.
Each running pipeline instance writes statistics to MapR Streams, and then the system pipeline consumes the statistics from MapR Streams. If the system pipeline unexpectedly shuts down, MapR Streams retains the statistics for the amount of time determined by the MapR Streams retention policy. If the system pipeline is down for longer than MapR Streams retains data, the statistics are lost.

Configuring a Pipeline to Write Statistics

You can configure a pipeline to write statistics after the Data Collector has been registered with Control Hub.

Open the pipeline.
On the Statistics tab, select one of the following options for the statistics aggregator:
- Discard - Discard the pipeline statistics. Control Hub cannot display statistics and metrics for the job.
- Write to SCH Directly - Write the pipeline statistics directly to Control Hub. Use when the job runs on a single Data Collector.
- Write to SDC RPC - Write the pipeline statistics to an SDC RPC destination. Use when the job runs on multiple Data Collectors and for development purposes only.
- Write to Kafka - Write the pipeline statistics to a Kafka cluster. Use when the job runs on multiple Data Collectors.
- Write to Kinesis - Write the pipeline statistics to Amazon Kinesis Streams. Use when the job runs on multiple Data Collectors.
- Write to MapR Streams - Write the pipeline statistics to MapR Streams. Use when the job runs on multiple Data Collectors.

To write statistics to an SDC RPC destination, on the Stats Aggregator - Write to SDC RPC tab, configure the following properties:

SDC RPC Properties	Description
SDC RPC Connection	Host and port where the system pipeline runs. The host must be a machine with a registered Data Collector that runs a pipeline instance for the job. Use the following format: `<host>:<port>`.
Retries per Batch	Number of times the SDC RPC destination tries to write a batch to the Dev SDC RPC with Buffering origin in the system pipeline. When the SDC RPC destination cannot write the batch within the configured number of retries, it fails the batch. Default is 3.
Back off Period	Milliseconds to wait before retrying writing a batch to the Dev SDC RPC with Buffering origin in the system pipeline. The value that you enter increases exponentially after each retry. For example, if you set the back off period to 10, the SDC RPC destination attempts the first retry after waiting 10 milliseconds, attempts the second retry after waiting 100 milliseconds, and attempts the third retry after waiting 1,000 milliseconds. Set to 0 to retry immediately. Default is 0.
SDC RPC ID	User-defined ID to allow the SDC RPC destination to pass statistics to the system pipeline. To avoid mixing statistics from different jobs, use a unique ID for each job. You cannot define an expression that evaluates to the ID.
Connection Timeout (ms)	Milliseconds to establish a connection to the system pipeline. The SDC RPC destination retries the connection based on the Retries Per Batch property. Default is 5000 milliseconds.
TLS Enabled	Enables the secure transfer of data using TLS.
Truststore File	Truststore file for TLS. Required if the keystore file is a self-signed certificate. Must be stored in the Data Collector resources directory, $SDC_RESOURCES, on each Data Collector machine that runs a pipeline instance for the job.
Truststore Password	Password for the truststore file. Tip: To secure sensitive information such as usernames and passwords, you can use runtime resources or credential stores.
Read Timeout (ms)	Milliseconds to wait for the Dev SDC RPC with Buffering origin in the system pipeline to read data from a batch. The SDC RPC destination retries the write based on the Retries Per Batch property. Default is 2000 milliseconds.
Use Compression	Enables the SDC RPC destination to use compression to pass data to the Dev SDC RPC with Buffering origin in the system pipeline. Enabled by default.
Verify Host in Server Certificate	Verifies the host in the keystore file on the Data Collector machine that runs the system pipeline.

To write statistics to Kafka, on the Stats Aggregator - Write to Kafka tab, configure the following properties:

Kafka Properties	Description
Broker URI	Connection string for the Kafka broker. Use the following format: `<host>:<port>`. To ensure a connection, enter a comma-separated list of additional broker URI.
Runtime Topic Resolution	Do not use at this time.
Topic	Topic to use. To avoid mixing statistics from different jobs, use a unique topic name for each job. You cannot define an expression that evaluates to the topic name.
Partition Strategy	Strategy to use to write to partitions: Round Robin - Takes turns writing to different partitions. Random - Writes to partitions randomly. Expression - Uses an expression to write data to different partitions. Writes records to the partitions specified by the results of the expression. Default - Uses an expression to extract a partition key from the record. Writes records to partitions based on a hash of the partition key.
Partition Expression	Expression to use when using the expression partition strategy. Define the expression to evaluate to the partition where you want statistics written. Partition numbers start with 0. Optionally, click Ctrl + Space Bar for help with creating the expression.
Kafka Configuration	Additional Kafka properties to use. Using simple or bulk edit mode, click the Add icon and define the Kafka property name and value. Use the property names and values as expected by Kafka. Do not use the broker.list property.
ZooKeeper URI	Connection string for the ZooKeeper of the Kafka cluster. Use the following format: `<host>:<port>`. To use a ZooKeeper quorum, enter a comma-separated list. To use a ZooKeeper chroot path, add the path at the end of the list as follows: <host>:<port>, <host2>:<port2>, .../<chroot_path>

To write statistics to Amazon Kinesis Streams, on the Stats Aggregator - Write to Kinesis tab, configure the following properties:

Kinesis Properties	Description
Access Key ID	AWS access key ID. Required when not using IAM roles with IAM instance profile credentials.
Secret Access Key	AWS secret access key. Required when not using IAM roles with IAM instance profile credentials.
Region	Amazon Web Services region that hosts the Kinesis cluster.
Endpoint	Endpoint to connect to when you select Other for the region. Enter the endpoint name.
Stream Name	Kinesis stream name. To avoid mixing statistics from different jobs, use a unique stream name for each job. You cannot define an expression that evaluates to the stream name.
Partitioning Strategy	Strategy to write data to Kinesis shards: Random - Generates a random partition key. Expression - Uses the result of an expression as the partition key.
Partition Expression	Expression to generate the partition key used to pass data to different shards. Use for the expression partition strategy.
Kinesis Producer Configuration	Additional Kinesis properties. When you add a configuration property, enter the exact property name and the value. The pipeline does not validate the property names or values.

To write statistics to MapR Streams, on the Stats Aggregator - Write to MapR Streams tab, configure the following properties:

MapR Streams Properties	Description
Runtime Topic Resolution	Do not use at this time.
Topic	Topic to use. To avoid mixing statistics from different jobs, use a unique topic name for each job. You cannot define an expression that evaluates to the topic name.
Partition Strategy	Strategy to use to write to partitions: Round Robin - Takes turns writing to different partitions. Random - Writes to partitions randomly. Expression - Uses an expression to write data to different partitions. Writes records to the partitions specified by the results of the expression. Default - Uses an expression to extract a partition key from the record. Writes records to partitions based on a hash of the partition key.
Partition Expression	Expression to use when using the expression partition strategy. Define the expression to evaluate to the partition where you want statistics written. Partition numbers start with 0. Optionally, click Ctrl + Space Bar for help with creating the expression.
MapR Streams Configuration	Additional configuration properties to use. Using simple or bulk edit mode, click the Add icon and define the MapR Streams property name and value. Use the property names and values as expected by MapR Streams. You can use MapR Streams properties and the set of Kafka properties supported by MapR Streams.
